COMPACTION EQUIPMENT · SERIES 02

Tamping
Rammers.

Focused impact compaction for trenches, foundations, pipeline backfill and confined work areas where maneuverability matters.

COMPARE MODELS ↘REQUEST A QUOTE ↗

11-14 kNRepresentative impact force58-83 kgRepresentative operating mass640-695/minPercussion rate by model

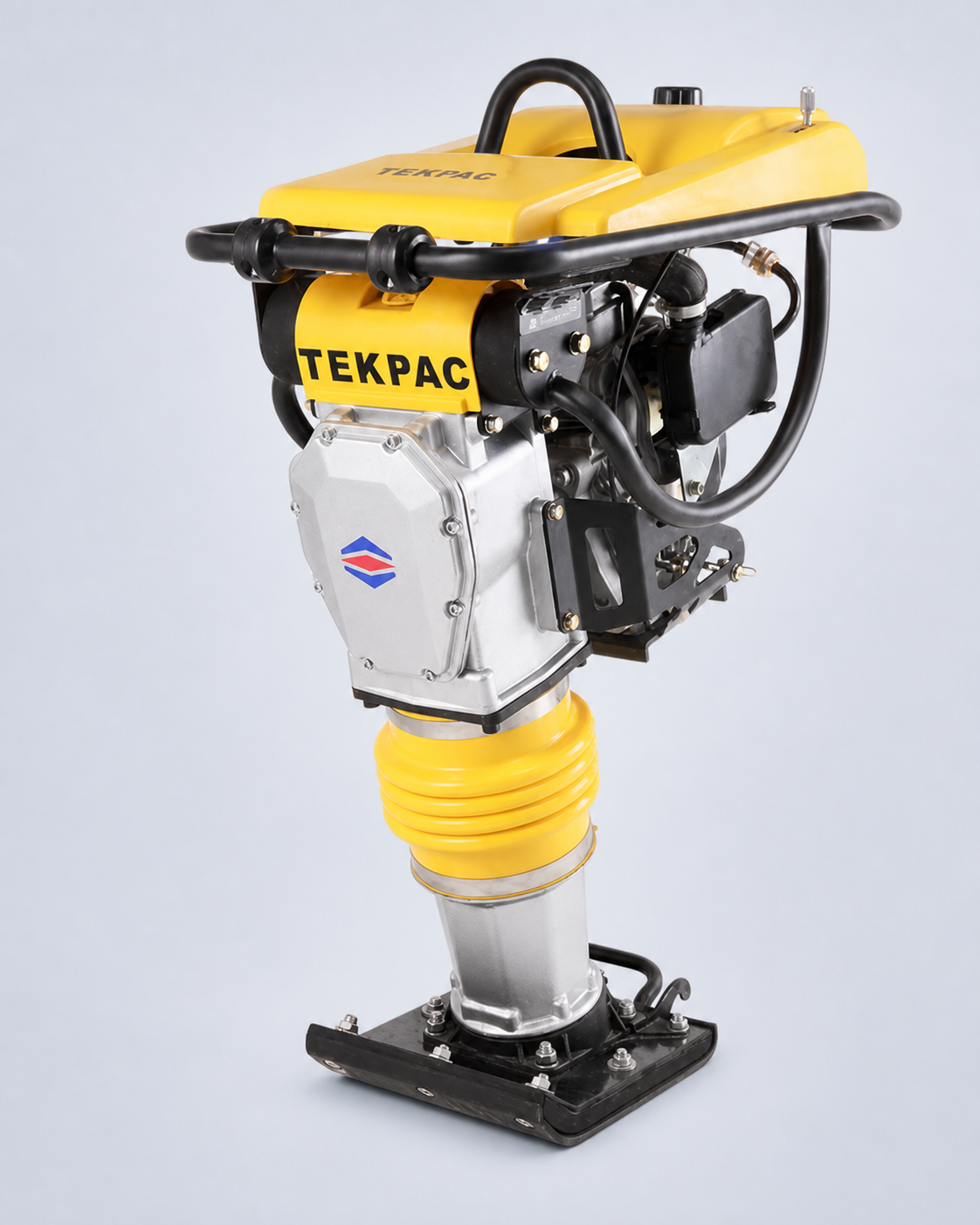

Original SG70H tamping rammer product photo

SG70H · TRENCH COMPACTION

SELECT BY APPLICATION

Match the rammer
to the working space.

01NARROW ACCESS

Compact shoe

For tight trenches, utility work and confined backfill where the machine must remain easy to position.

SG60H · SG60R
225 mm shoe width

02GENERAL PURPOSE

Standard range

Balanced operating mass and impact for common foundation, trench and repair applications.

MR68H · MR75R · MR75H
SG70 / SG80 Series

03ENGINE OPTIONS

Market fit

Select the machine family first, then confirm the preferred engine, fuel, certification and service needs.

RM80H · RM80LC · RM80R
MR85Y diesel option

REAL PRODUCT FOOTAGE

Review the frame,
engine access and footprint.

This original walkaround gives a closer view of a real machine from the product archive. Final engine, shoe size, color and branding are confirmed with the selected model.

ASK ABOUT THIS RANGE ↗

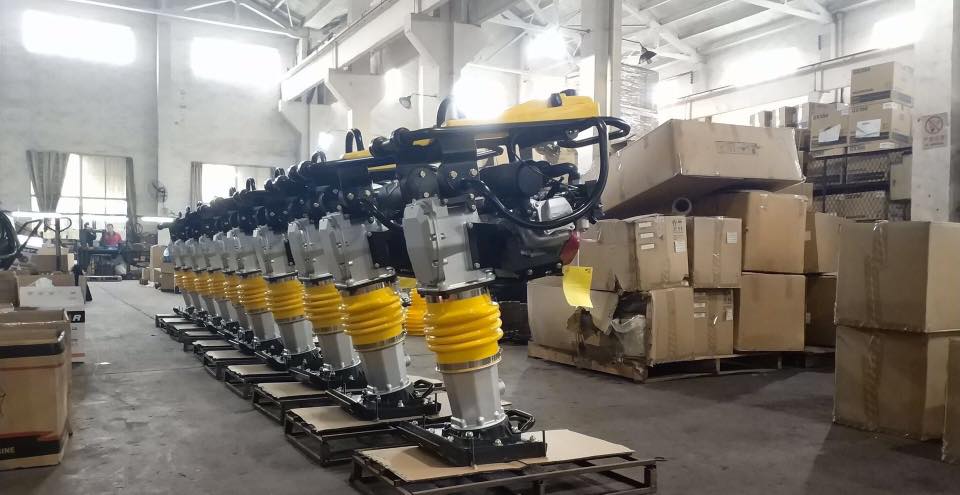

Original factory photo of a tamping rammer production line

JOB-SITE DETAILS

Control, protection
and transport.

The rammer range is designed around practical handling and service access. Final features vary by configuration and should be confirmed during quotation.

Throttle control for convenient operation
Protective handrail frame
Durable bellows made with German material
Integrated lifting handle
Transport trolley or wheel options

DISCUSS YOUR APPLICATION ↗

QUICK COMPARISON

Ten representative models.

Use the figures to create a shortlist. We will confirm engine brand, packing, certification and availability before quotation.

Model	Rated power	Operating mass	Impact force	Jumping stroke	Shoe size
MR68H	2.2 kW / 3.0 hp	68 kg	13 kN	40-85 mm	330 x 285 mm
MR75R	3.0 kW / 4.0 hp	75 kg	14 kN	40-80 mm	330 x 285 mm
MR75H	3.0 kW / 4.0 hp	72 kg	14 kN	40-80 mm	330 x 285 mm
MR85Y	3.1 kW / 4.2 hp	83 kg	14 kN	40-80 mm	330 x 285 mm
SG70R1	2.2 kW / 3.0 hp	63 kg	11 kN	40-85 mm	330 x 285 mm
SG70LC	3.0 kW / 4.0 hp	71 kg	13 kN	40-85 mm	330 x 285 mm
SG60H	2.2 kW / 3.0 hp	58 kg	11 kN	40-85 mm	330 x 225 mm
RM80H	4.0 kW / 5.5 hp	71 kg	13 kN	40-85 mm	330 x 285 mm
RM80LC	4.2 kW / 6.5 hp	69 kg	13 kN	40-80 mm	330 x 285 mm
RM80R	3.7 kW / 5.0 hp	68 kg	12 kN	40-80 mm	330 x 285 mm

Technical figures are transcribed from the supplied TEKPAC catalogue. The catalogue uses different engine configurations across model variants; confirm exact specifications before ordering.

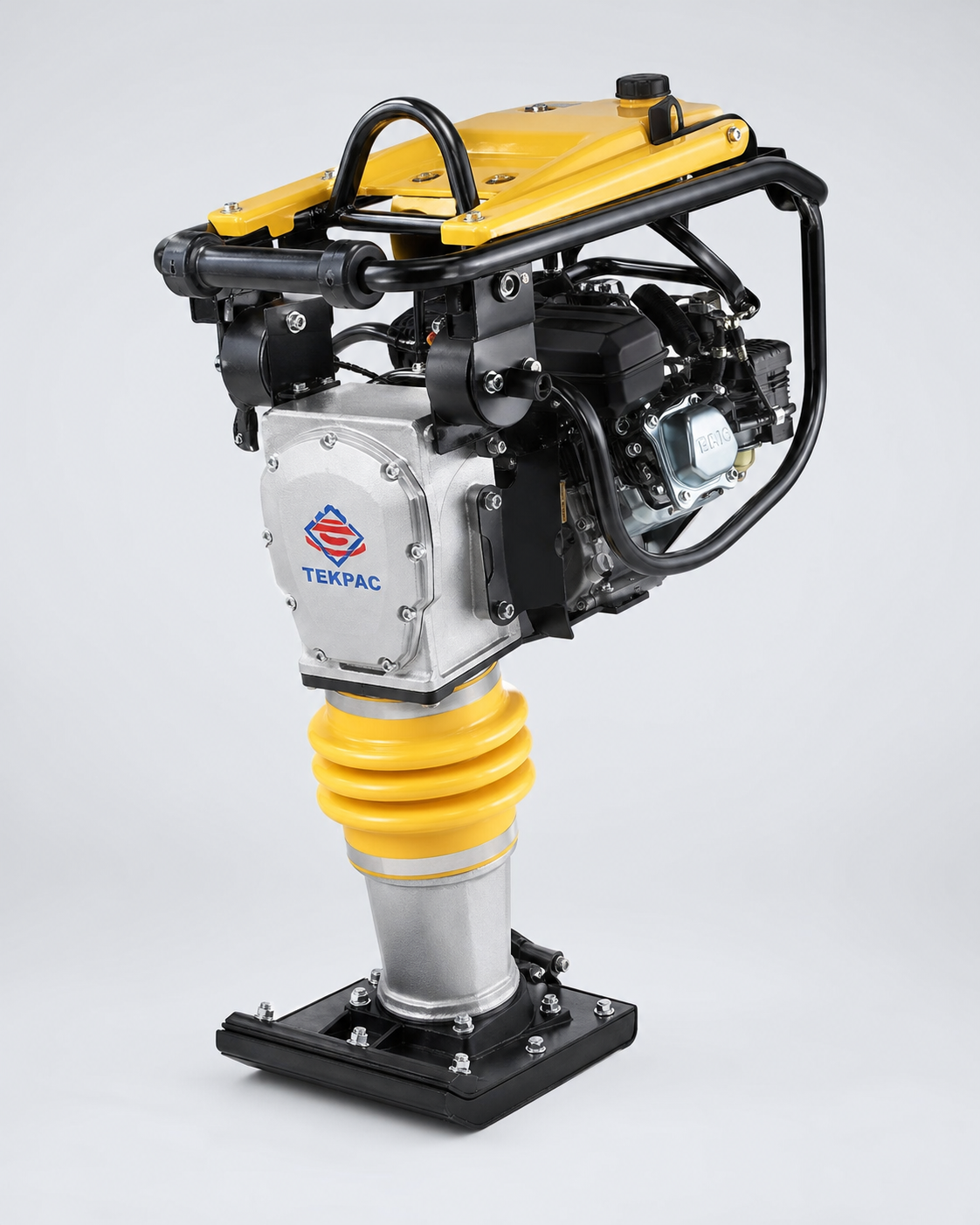

SG SERIES

Balanced and practical

Multiple power configurations for distributors, rental fleets and professional contractors.

Original tamping rammer factory lineup photo

RM / SG SERIES

Confirm the engine

We match the final configuration to local fuel preference, service conditions and market requirements.

MODEL SELECTION SUPPORT

Send the job details.
We’ll shortlist models.

01 · Soil and application02 · Trench width03 · Quantity and destination04 · Preferred engine
