COMPACTION EQUIPMENT · SERIES 01

Plate
Compactors.

Forward and reversible machines for soil, sand, gravel, asphalt and paving work—from compact jobsites to demanding heavy compaction.

COMPARE MODELS ↘REQUEST A QUOTE ↗

10–65 kNCentrifugal force range50–452 kgSelected operating mass rangeEngine choiceSelected petrol & diesel options

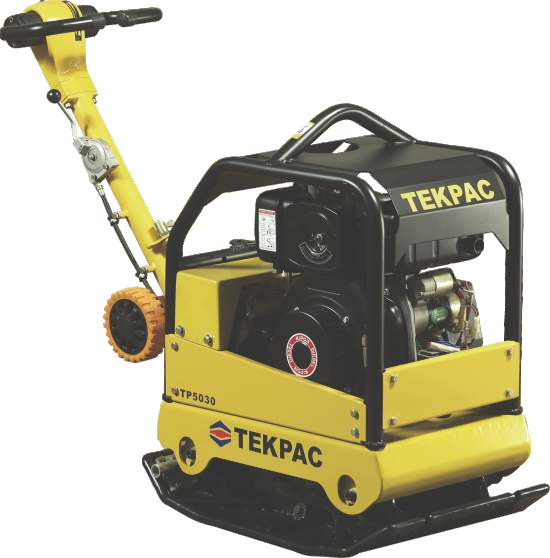

TP5030 · HYDRAULIC REVERSIBLE

SELECT BY APPLICATION

Start with the job,
then confirm the engine.

01LIGHT & MOBILE

Forward

For asphalt finishing, paving blocks, landscaping and everyday repair work where maneuverability matters.

TP65 · TP85 · TP100 · TP120
MS50 · MS60/65 · MS80/95 · MS90/100

02MORE CONTROL

Reversible

Forward and reverse travel for trenches, foundations and deeper compaction on granular material.

MS125 · MSH160 · MS270 · MS330

03HEAVY DUTY

Hydraulic reversible

Higher productivity and controlled direction changes for professional contractors and demanding jobsites.

TP5020 · TP5030 · TP300 · TP400
New TP350-4 · TP400-4 · TP450-4 · TP500-4

REAL PRODUCT FOOTAGE

Watch the machine
during a running test.

Original workshop footage provides a practical view of handling and machine proportions. The exact model, engine and configuration shown in a quotation will be confirmed separately.

ASK ABOUT THIS RANGE ↗

NEW PRODUCT PACKAGE · PREMIUM REVERSIBLE RANGE

A clearer step up
for heavy compaction.

The new TP series extends an established reversible plate compactor line with four Honda-powered levels from 325 kg / 42 kN to 452 kg / 65 kN.

DISCUSS THE NEW TP RANGE ↗

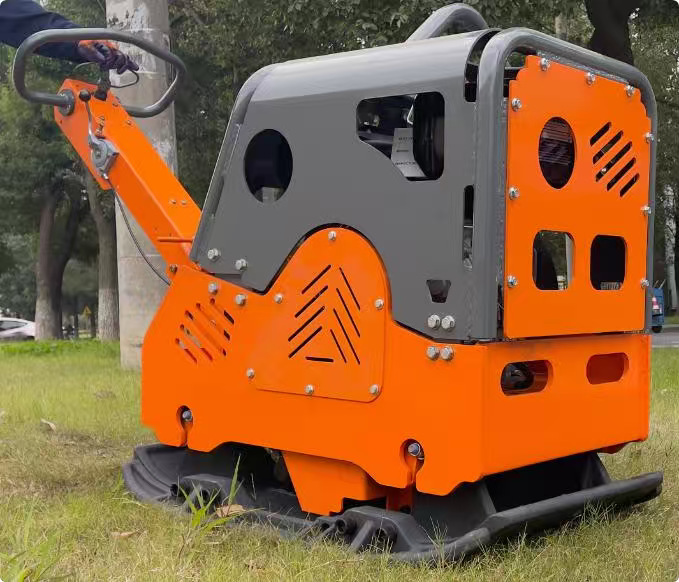

New TP premium reversible plate compactor real-machine reference, front angle — REAL-MACHINE REFERENCE · FRONT ANGLE

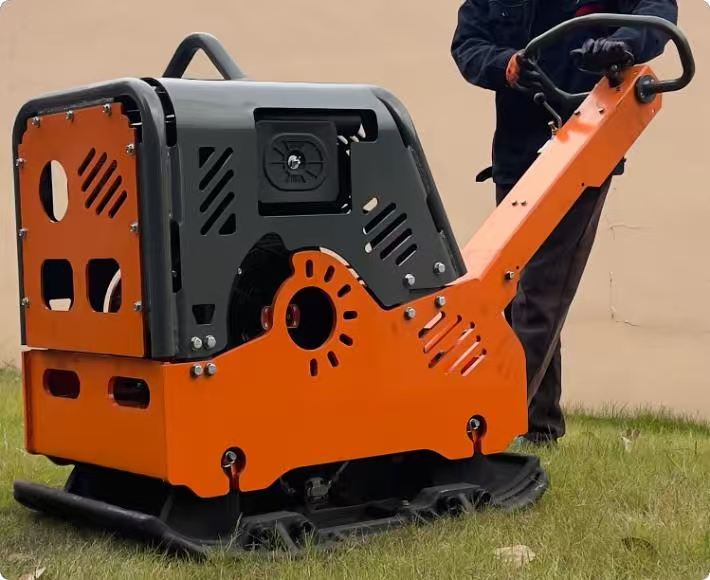

New TP premium reversible plate compactor real-machine reference, rear angle — REAL-MACHINE REFERENCE · REAR ANGLE

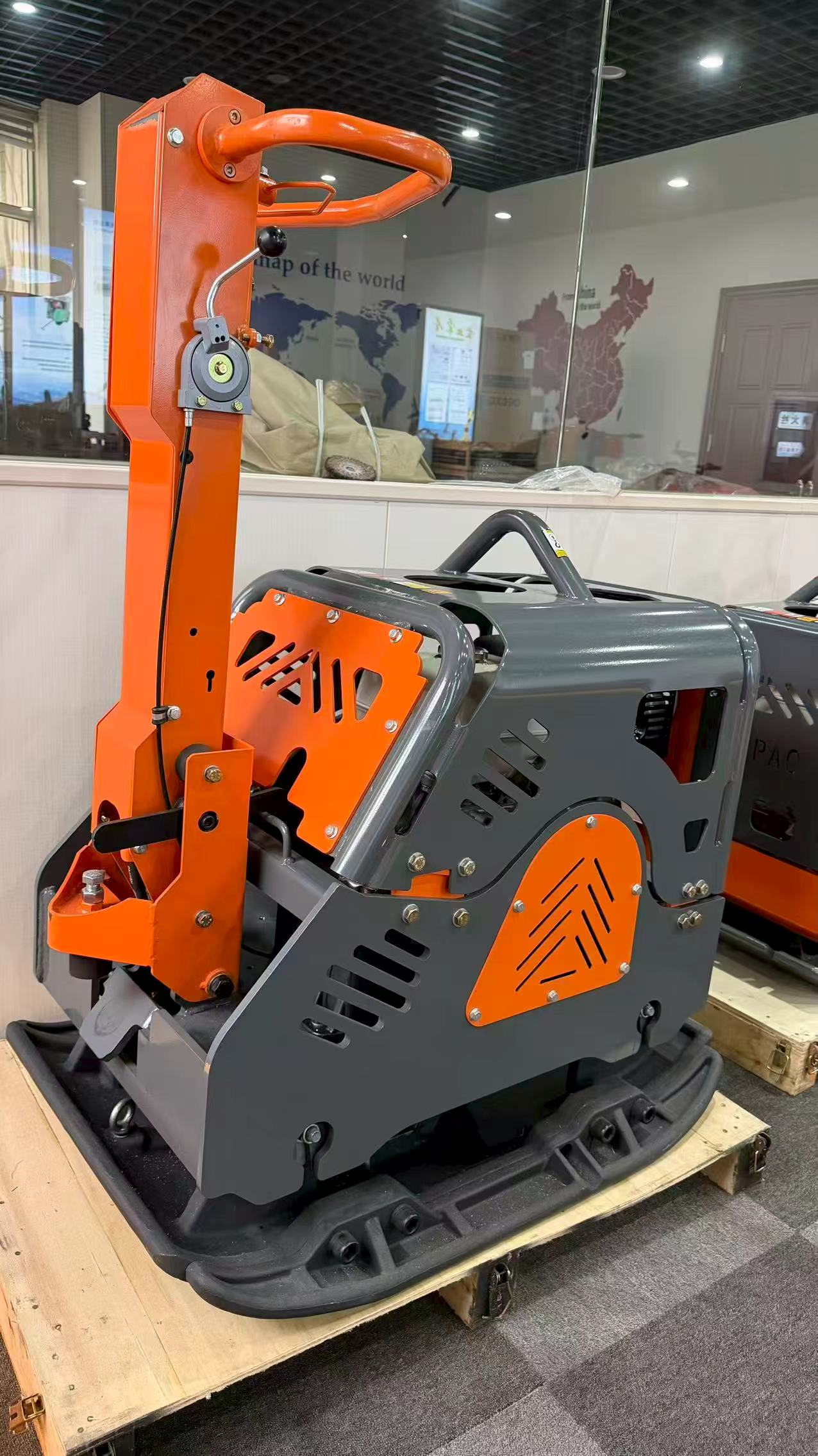

New TP premium reversible plate compactor control and structure reference — CONTROL & STRUCTURE REFERENCE

01 · Entry premium

TP350-4

Engine: Honda GX390
Operating weight: 325 kg
Centrifugal force: 42 kN
Frequency: 4,100 vpm

02 · Core transition

TP400-4

Engine: Honda GX390 / GX430
Operating weight: 368 kg
Centrifugal force: 45 kN
Frequency: 3,900 vpm

03 · Benchmark flagship

TP450-4

Engine: Honda GX390 / GX430
Operating weight: 417 kg
Centrifugal force: 55 kN
Frequency: 3,900 vpm

04 · Heavy-duty flagship

TP500-4

Engine: Honda GX390 / GX430
Operating weight: 452 kg
Centrifugal force: 65 kN
Frequency: 3,900 vpm

HYDRAULIC OPERATING CONCEPT

Forward. Reverse. Control.

Real-machine footage shows the control layout and operating context before model-specific confirmation.

FIELD OPERATION

Heavy compaction in motion.

Outdoor footage provides a practical view of machine movement and working proportions.

The new TP series uses hydraulic forward/reverse control with LG 400-type operating logic. This is an operating reference only; the TP range is an independent TEKPAC product line. Images and footage show real machines, but the exact model, engine, color, branding, certification and packing are confirmed for each inquiry.

FEATURED RANGE

Hydraulic control.
Jobsite-ready build.

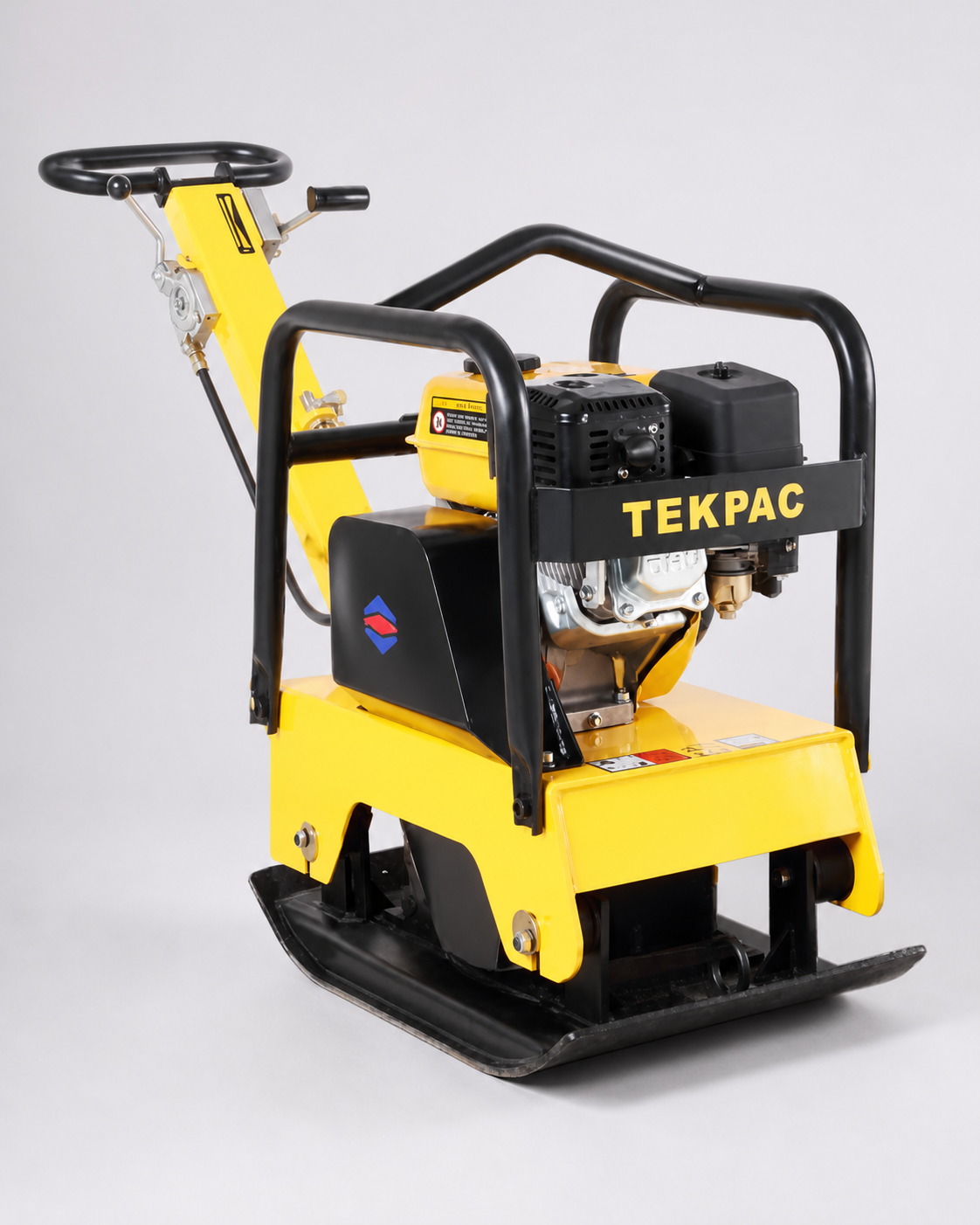

TP series hydraulic reversible compactors combine directional control with a cast-iron plate and protective frame. Available engine and machine configurations vary by model.

Hydraulic operating handle
Protective frame with lifting hook
Throttle control on the handle
Cast-iron base plate
Transport wheel on selected models

DISCUSS TP SERIES ↗

QUICK COMPARISON

Twelve representative models.

Operating mass varies by selected engine. Use this table to shortlist; we will confirm the final configuration before quotation.

Model	Drive type	Operating mass	Centrifugal force	Plate size
TP65	Forward	65–76 kg	10 kN	49 × 34 cm
TP85	Forward	78–89 kg	12 kN	55 × 41 cm
TP100	Forward	96–107 kg	18 kN	55 × 45 cm
TP120	Forward	102–113 kg	21 kN	55 × 50 cm
MS125	Reversible	121–133 kg	25 kN	63 × 40 cm
MSH160	Reversible	149–179 kg	30.5 kN	73 × 37 / 50 cm
TP5020	Hydraulic reversible	130–141 kg	20 kN	65 × 40 cm
TP5030	Hydraulic reversible	161–173 kg	30 kN	69 × 50 cm
MS270	Reversible	240–267 kg	36 kN	89 × 67 cm
MS330	Reversible	260–283 kg	38 kN	89 × 61 cm
TP300	Hydraulic reversible	296–323 kg	40 kN	90 × 45 cm
TP400	Hydraulic reversible	400–425 kg	45 kN	89 × 67 cm

Technical figures above are transcribed from the supplied TEKPAC catalogue. Exact engine, power, packing, certification and availability must be confirmed before ordering.

FORWARD RANGE

Compact mobility

Simple handling for paving, landscaping, road maintenance and rental fleets.

OPTIONAL CONFIGURATION

Built for the application

Selected models can be configured with water tank, protection frame, transport wheels or paving mat.

MODEL SELECTION SUPPORT

Tell us four details.
We’ll narrow the range.

01 · Material / application02 · Required quantity03 · Destination country or port04 · Preferred engine or fuel
